Medi-Flow Anti decubitus alternating pressure system with ventilation For Stage 2 decubitus ulcers (according to Seiler)

Every 6 minutes, 50 % of the mattress inflates whilst the other 50 % deflates. The alternating pressure pad, with large, interchangeable air cells, offers additional comfort: Of the 18 cells, the 8 cells between the shoulder and hip release air through the micropores to optimise air circulation and provide comfort to the particularly high-risk sacral area. The soft protective cover is watertight, permeates air and may be removed for washing. The inflation pressure can be adjusted in accordance with the patient’s weight. Mattress, A/B System

Dimensions: 200 x 90 x 13 cm (inflated)

with a 60 cm long positioning strap at each end

Cell size: approx. 12,7 cm Ø, individually removable

Total cells: 18 cells made of ITPU-nylon, 8 with micro-fine ventilation pores

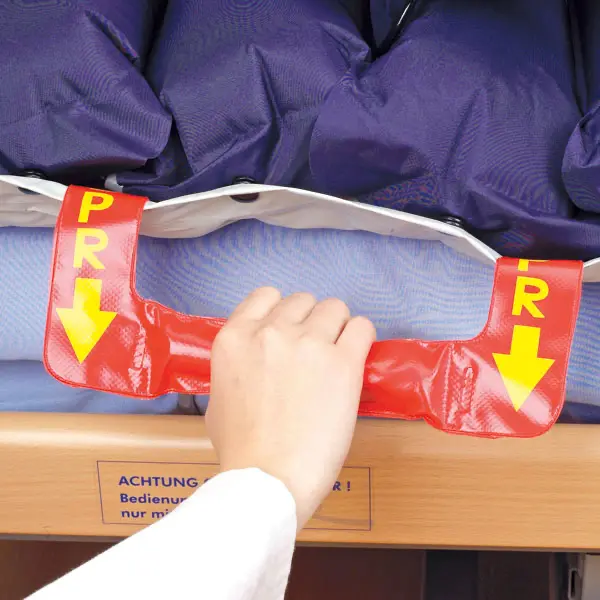

Deflation: CPR-function for quick deflation (emergency ventilation CPR)

Detachable cover: watertight, air permeable nylon (removable and washable)

Max. load: 150 kg

Pump

Pump: 220 V/50 Hz

Pressure: 70 - 130 mm/HG

Air volume: 2- 7 l/min.

Cycle: alternates every 6 minutes

Size: 25,4 x 13 x 10 cm

Control display: control light for standard or low pressure.
